Talpa LH 425
LH 425 is intended for use in underground galleries mainly for the purpose of cleaning and transporting bulk materials after blasting. It can also be used in tunneling for rail and road transport and in the construction of hydraulic structures and is suitable for cross sections of 4×4 meters and more.
Tramming capacity : 10.000 Kg. ~ 4 m³ / 5.2 yd³
- Excellent manoeuvring and operation performance
- Robust steel structure
- Constant ground contact with oscillating rear axle
- Catalytic converter
- Optional fire suppression system
- Oil cooled, fail-safe (SAHR) brakes
| Capacity | |
| Empty weight | 29.950 kg |
| Bucket capacity | 10.000 kg (Optional 4 m3 / 5 m3) |
| Engine | Option 1 | Option 2 | Option 3 | Option 4 |
| Diesel Engine | Cummins QSL9.0 | Volvo TAD852VE | Cummins L9. | Volvo TAD882VE |
| Output | 209 kW @ 2000 rpm | 210 kW @ 2200 rpm | 224 kW @ 2100 rpm | 210 kW @ 2200rpm |
| Torque | 1451 Nm @ 1400 Rpm | 1237 Nm @ 1350 rpm | 1525 Nm @ 1100 rpm | 1255Nm @ 1400 rpm |
| Number of cylinders | 6 | 6 | 6 | 6 |
| Diplacement | 8.9 L | 7.7 L | 8.9 L | 7.7 L |
| Cooling system | Water cooled | Water cooled | Water cooled | Water cooled |
| Emission | Euro Stage III A, EPA Tier 3 | Euro Stage III A, EPA Tier 3 | Euro Stage V | Euro StageV |
| Speeds (*4.th blocked by OEM) | 4.1 / 7.5 / 12.5 / *22.1 | 4.0 / 7.8 / 13.3 / *22.7 | 4.3 / 7.9 / 13.2 / *23.3 | 4 / 7.8 / 13.3 / *22.7 |
| Exhaust system | Catalytic converter |
| Performance | |
| Raising | 6.0 sec. |
| Lowering | 4.9 sec. |
| Tipping | 1.8 sec. |

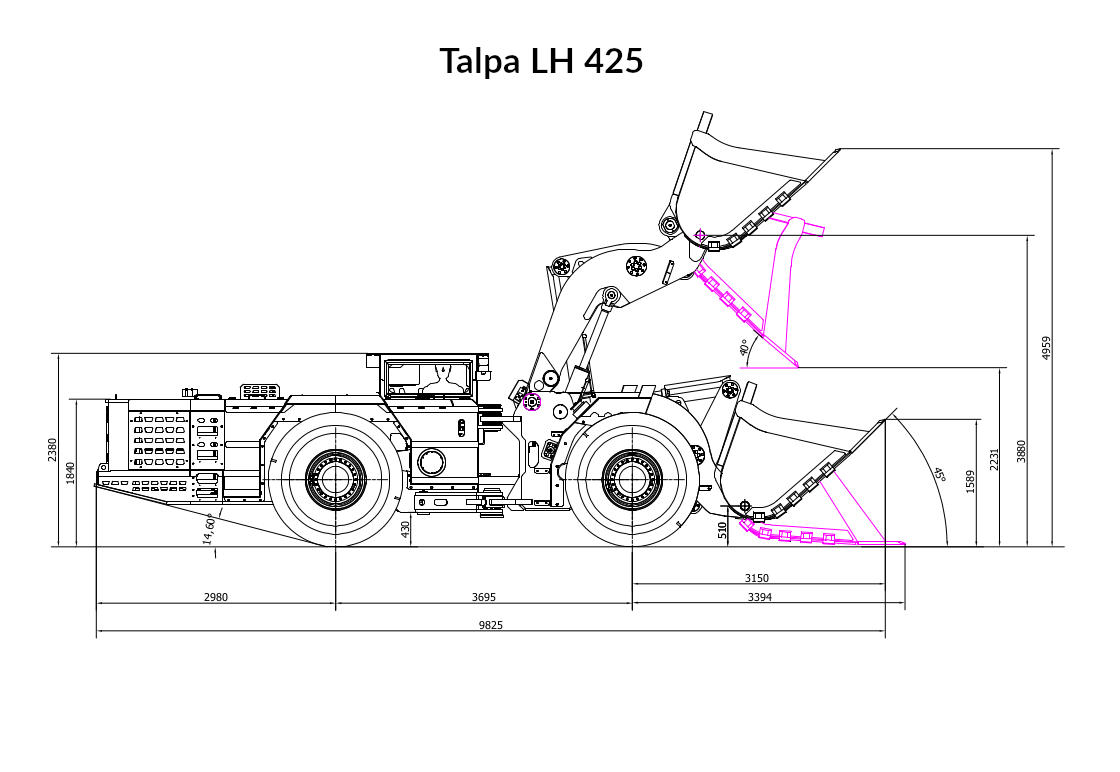

| Machine dimensions | |
| Length (mm) | 9.525 |
| Wideness (mm) | 2.528 |
| Height – (canopy ,mm) | 2.380 |
| Driveline | |
| Transmission | Powershift Transmission with Modulation – DANA |
| Gears | 4 Forward / 4 Reverse |
| Torque converter | DANA |
| Axles | Kessler D101 series |
| Degree of Axle Oscillation | +/-8° |
| Brake type | Spring Applied Hydraulically Released brakes (SAHR) |
| Canopy | |
| Cabin type | Closed Cabin with A/C & Heating |
| ROPS/FOPS approved. | |
| Steering control | Joystick |
| Electric system | |
| Voltage | 24V |
| Battery | 2 x 180 A |
| Lights | 5 Front, 4 Rear, 1 Side (LED) |
| Control system | |
| Type | Electrohidrolic (PWM) |
| Remote control | Optional – HBC Radiomatic |
| Other specifications | |
| Reverse gear alert | |
| Central lubrication system | Optional hydraulic system |
| Tyres | 18.00 R25 |
| Manuel lubrication system | |
| Fuel tank capacity | 390 Lt |
| Hydraulic tank capacity | 340 Lt |
| Hydraulic system | |
| Main Pump (Tilt-Lift-Steering) | Heavy Duty Gear |
| Manual Hydraulic Tank Fill Pump | |
| Filtration type | Return, Suction |
| Pump (brake) | Gear Type |
| Pump (fan) | Gear Type |
| Main Control Valve | Solenoid Operated |
Manufacturer reserves the right to change the specifications above. Please contact us for further information.
