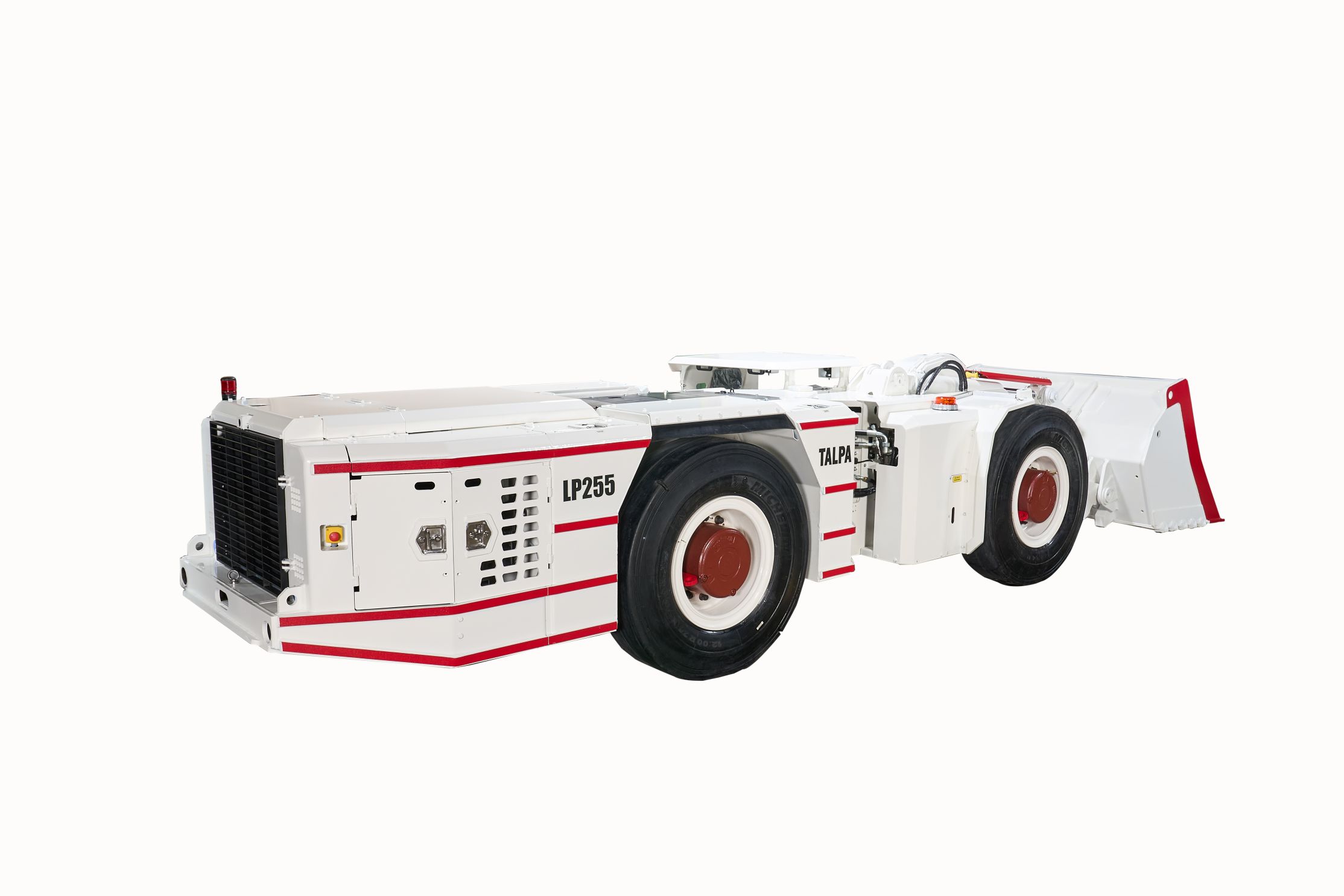

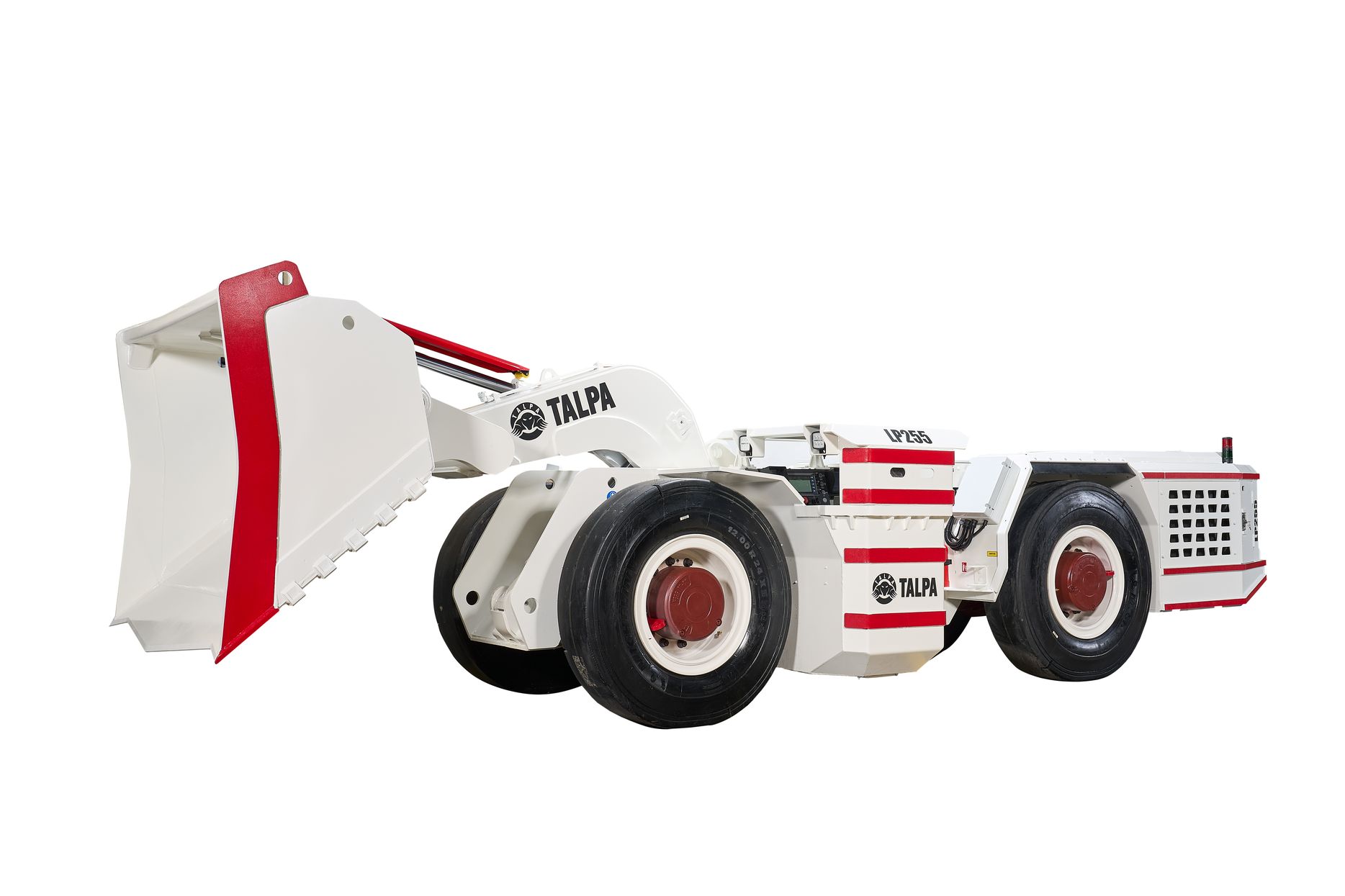

LP 255 -Low Profile
“The Talpa LP 255 is a heavy-duty diesel LHD developed for low-profile underground mining operations. Its compact structure, balanced chassis design, and optimized weight distribution provide high maneuverability in narrow-section drifts and efficient loading performance.With a 5-ton carrying capacity and 1.8 m³ standard bucket volume, the LP 255 is designed to deliver reliable productivity in low-seam applications, development drifts, and low-clearance underground operations.Its robust engine and driveline architecture offer high traction performance, efficient power transmission, and low operating costs, while the heavy-duty hydraulic system and SAHR brake technology support safe and continuous operation.”
Tramming capacity : 5.500 kg. – 1.8 m³ / 2.5yd³
- Excellent maneuvering and operation performance
- High/Low damping level with option
- Short cycle time
- Efficient loader characteristic
- Various bucket options for different operations
- DANA powershift transmission
- Robust steel structure
- Constant ground contact with oscillating rear axle
- Catalytic converter and spark arrester
- Optional fire suppression system
- Oil cooled, fail-safe (SAHR) brakes
- Kessler axles with planetary hub reduction
- Optional central lubrication
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Bucket Capacity | ||
| Carrying Capacity | Standard Bucket | |
| 5500 kg | 1.8 m³ | |
| Weights | ||
| Empty Weight | Loaded Weight | |
| 13000 kg | 18500 kg | |
| Engine | ||
| Diesel Engine | Cummins QSB4.5 | |
| Power | 104 kW @ 2000 rpm | |
| Torque | 504 Nm @ 1800 rpm | |
| Number of Cylinders | 4 | |
| Displacement | 4.5 L | |
| Cooling System | Water-cooled | |
| Emission | Euro Stage III A | |
| Exhaust System | ||
| Catalytic Converter | ||
| Transmission | ||
| Powershift Transmission – DANA RT20000 series | ||
| Torque Converter | ||
| DANA | ||
| Axles | ||
| Kessler D81 Series | ||
| Oscillation Angle | ||
| +/– 8° | ||
| Service Brake | ||
| Spring Applied Hydraulically Released brakes (SAHR) | ||
| Tyres | ||
| 12.00R24 | ||
| Tyres are application-approved. Brand subject to stock availability. | ||
| Electrical System | ||
| Battery | System Voltage | Lighting (LED) |
| 2 x 105 A | 12 V | 2 Front, 2 Rear |
| Hydraulic System | ||
| Main Pump (Lift-Lower-Steering) | Gear Type (Heavy Duty) | |
| Filtration Type | Return, Suction, Pressure | |
| Pump (Brake) | Gear Type (Heavy Duty) | |
| Pump (Fan) | Gear Type | |
| Tank Capacities | ||
| Fuel Tank | Hydraulic Tank | |
| 145 L | 160 L | |

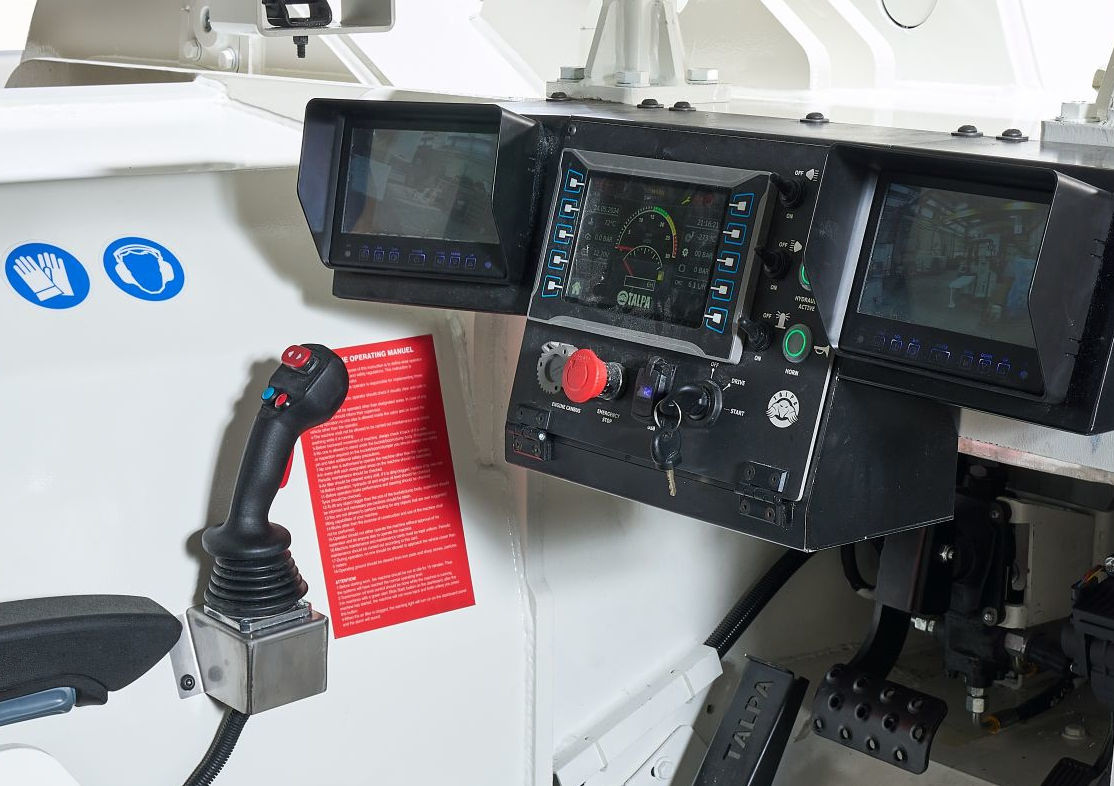

| Control System | ||
| Type | Remote Control | |
| Proportional | Optional | |
| MAIN SPECIFICATIONS | |
|---|---|
| Canopy | |
| Steering | Joystick |
| Open Cab | |
| Various Options | |
| Reverse Alarm | |
| Air Filter System | Dry Type – Two-Stage Filtration |
| Fire Extinguisher | |
| Automatic Fire Suppression System | Optional |
| Manual Lubrication | |
| Automatic Central Lubrication System | Optional |
| Aggressive Environment Package | Optional |
| Bucket with Push Plate | Optional |
| Rear-View Camera | |
| Certifications | |
| CE | |
| EN ISO 3471:2008 ROPS | |
| EN ISO 3449:2008 FOPS | |
| EAC | |
| Operational Environment & Limits | |
| Ambient Temperature | -20°C to +45°C |
| Standard Operating Altitude | Up to 2000 m without nominal power loss |
| Maximum Acceptable Gradient | 25% |
Manufacturer reserves the right to change the specifications above. Please contact us for further information.
