Talpa LH 320
Talpa LH 320, a diesel-powered 7-ton loader, is specifically designed for demanding operations in underground mines, tunneling projects, and mid-size development work. With its robust four-wheel drive articulated chassis and a canopy certified with ROPS&FOPS standards, this machine ensures high levels of safety and efficiency even in very challenging mining environments.
Tramming capacity : 7.000 kg. ~ 3 m³ / 3.9 yd³
| Capacities | |
| Empty weight (kg) | 20.640 |
| Bucket capacity | 7.000 kg / 3 m³ |
| Engine options | Option 1 | Option 2 | Option 3 | Option 4 |
| Diesel engine | Cummins QSB6.7 | VOLVO TAD850VE | Cummins B6.7 | Volvo TAD882VE |
| Output | 164kW/2200rpm | 160 kW @ 1350 rpm | 168 kW @ 2200 rpm | 210 kW @ 2200rpm |
| Torque | 949 Nm @ 1500 rpm | 1060 Nm @ 1200 rpm | 1044 Nm @ 1500 rpm | 1255Nm @ 1400 rpm |
| Number of cylinders | In-line 6 | In-line 6 | In-line 6 | In-line 6 |
| Displacement | 6.7 L | 7.7 L | 6.7 L | 7.7 L |
| Cooling system | Water cooled | Water cooled | Water cooled | Water cooled |
| Emission | Euro Stage III A, EPA Tier 3 | Euro Stage III A, EPA Tier 3 | Euro StageV | Euro StageV |
| Gear speeds (**4 th blocked by OEM) | 4.0 / 7.5 / 12.7 / *21.4 | 4.4 / 8.0 / 13.5 / *23.0 | 4.0 / 7.5 / 12.7 / *21.4 | 4.4 / 8.3 / 13.9 / *23.3 |
| Exhaust System | Catalytic Converter |
| Driveline | |
| Transmission | Powershift Transmission with Modulation – DANA |
| Torque | Dana |
| Gears | 4 Forward / 4 Reverse |
| Axles | Kessler |
| Degree of Axle Oscillation | +/- 8° |
| Brake type | Spring Applied Hydraulically Released brakes (SAHR) |

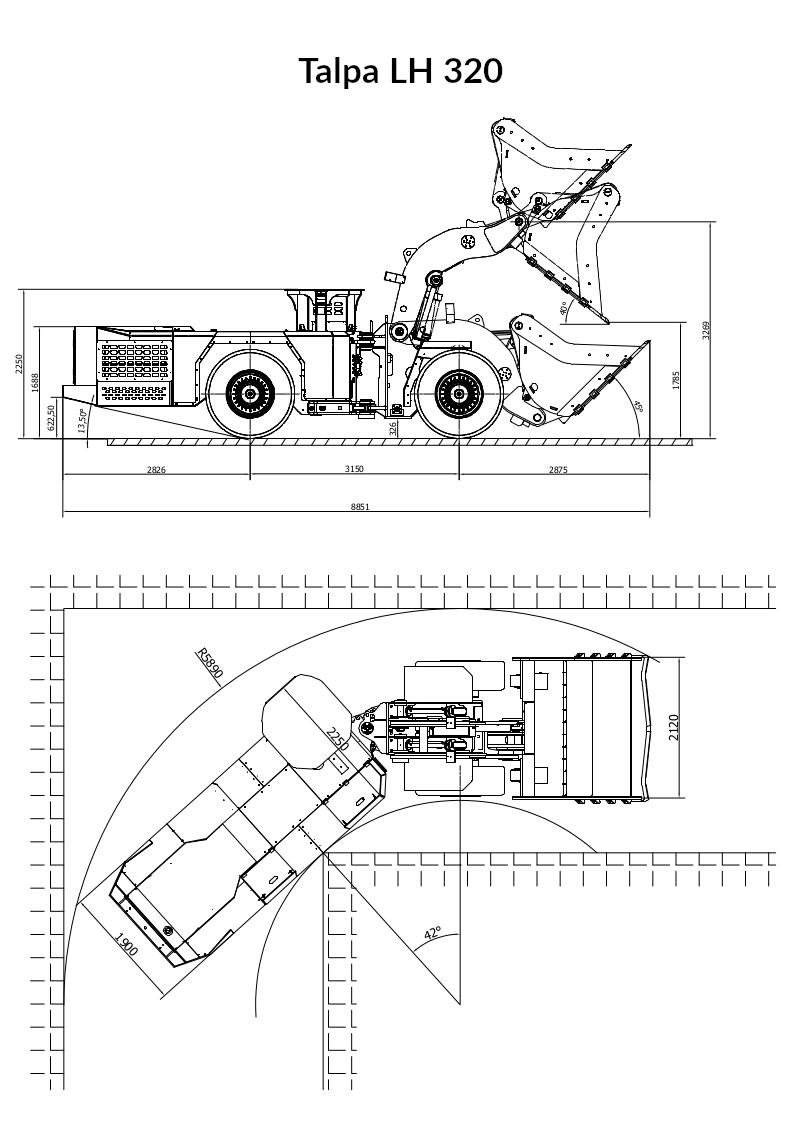

| Machine dimensions | |
| Length (mm) | 8.851 |
| Width (mm) | 2.120 |
| Height ( canopy, mm ) | 2.250 |
| Bucket cycle times | |
| Raising | 6.5 sec. |
| Lowering | 4.2 sec. |
| Tipping | 1.3 sec. |
| Other specifications | |
| Tyres | 17.50R25 L5 |
| Batteries | 2 x 12 V / 180 A |
| Lights | 5 Front, 4 Rear, 1 Side |
| ROPS/ FOPS approved canopy | |
| Manuel lubrication system | |
| Fuel tank capacity | 210 Lt |
| Hydraulic tank capacity | 300 Lt |
| Hydraulic system | |
| Main Pump (Tilt-Lift-Steering) | Heavy Duty Gear |
| Filtration Type | Return, Suction |
| Pump (Brake) | Gear Type |
| Pump (Fan) | Gear Type |
| Main Control Valve | Solenoid Operated |
Manufacturer reserves the right to change the specifications above. Please contact us for further information.
